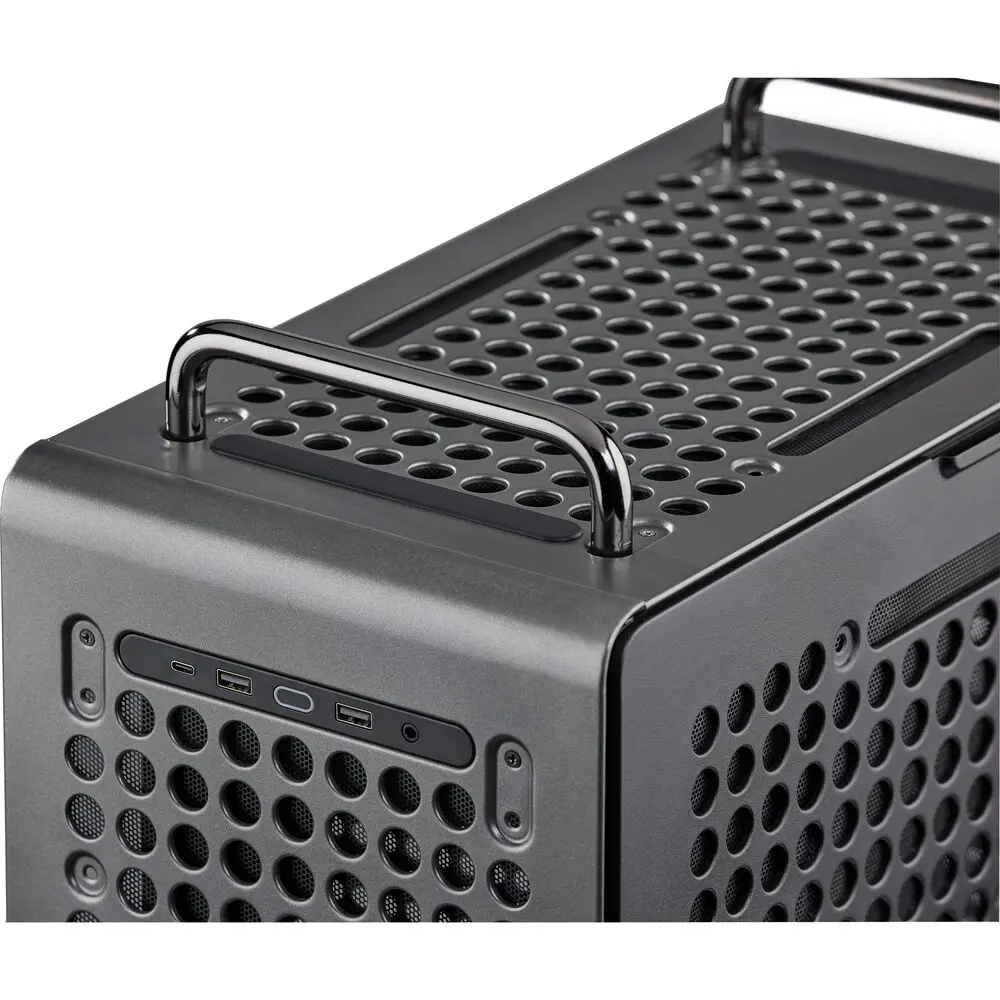

Cooler Master QUBE 540 High-Airflow ATX Mid-Tower Case

Product Features

High-Airflow Mid-Tower Design: QUBE 540 High-Airflow ATX Mid-Tower Case in the QUBE Series with Mid Tower sizing

Panel Materials: Steel exterior with steel right side panel and TG left side panel

Cooling Support: Fan support for front, top, rear, and bottom, plus radiator support on front, top, rear, and bottom

Rear Fan Included: Pre-installed 1x 120mm Black Fan at the rear

Front I/O: 2x USB 3.2 Gen 1 Type A and 1x USB 3.2 Gen 2×2 Type C, plus 1x 3.5 Mic and Audio Combo Jack

Clearance Support: Up to 172mm CPU cooler clearance, 200mm power supply clearance, and up to 415mm graphics card clearance without front fan

Dust Filtration: Dust filters on top, bottom, and front

Product Specifications

Brand and Series: Cooler Master QUBE Series

Product Name: QUBE 540 High-Airflow ATX Mid-Tower Case

Model: Q540-MGNN-S00

Color: Stardust Iron

Size: Mid Tower

Materials: Exterior Steel; Right Side Panel Steel; Left Side Panel TG

Dimensions With Protrusions: 438.5 x 225 x 492.1mm

Dimensions Without Protrusions: 425 x 225 x 425mm

Volume Without Protrusions: 40.64L

Volume With Panel, Protrusions and Feet: 48.55L

Motherboard Support: ITX / M-ATX / ATX / E-ATX Up To 280mm

Expansion Slots: 7

Drive Bays: 3.5″ HDD 1 Shared 3.5″ and 2.5″ Mounting On PSU Bracket; 2.5″ SSD 2 Max. 5; 5.25″ ODD N/A

I/O USB Ports: 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C

I/O Audio: 1 x 3.5 Mic / Audio Combo Jack

Fan Support Front: 3 x 120mm Without I/O Panel / 2 x 140mm

Fan Support Top: 3 x 120mm Without I/O Panel / 2 x 140mm

Fan Support Rear: 1x 120mm

Fan Support Bottom: 3 x 120mm / 2 x 140mm

Preinstalled Fans: Front N/A; Top N/A; Rear 1x 120mm Black Fan

Radiator Support Front: 140 / 280 / 360mm Without I/O Panel

Radiator Support Top: 140 / 280 / 360mm Without I/O Panel

Radiator Support Rear: 120mm

Radiator Support Bottom: 140 / 280 / 360mm Without I/O Panel

Clearances: CPU Cooler 172mm; Power Supply 200mm; Graphics Card 415mm Without Front Fan

Cable Routing Behind Motherboard Tray: 27mm

Dust Filters: Top / Bottom / Front

Power Supply Support: ATX / SFX
