Description
Product Features
High-Performance GPU Clocks: Boost Clock up to 2970MHz and Game Clock up to 2400MHz for demanding gaming workloads
16GB GDDR6 Memory: 16GB GDDR6 on a 256-bit memory bus with 20Gbps effective memory clock
Advanced AMD Architecture: Built on AMD RDNA 4 Architecture with 4096 Stream Processors, 64 Compute Units, and 64 Ray Accelerators
Next-Gen Display Connectivity: DisplayPort 2.1a and HDMI outputs with support for up to 4 displays and up to 7680×4320 resolution
Thermal Interface Material: Honeywell PTM7950 TIM designed to enhance thermal conductivity for improved reliability and longevity
Cooling Design: Free Flow cooling design with AeroCurve Fan Blade, Optimized Composite Heatpipes, and Integrated Cooling Module for efficient heat dissipation

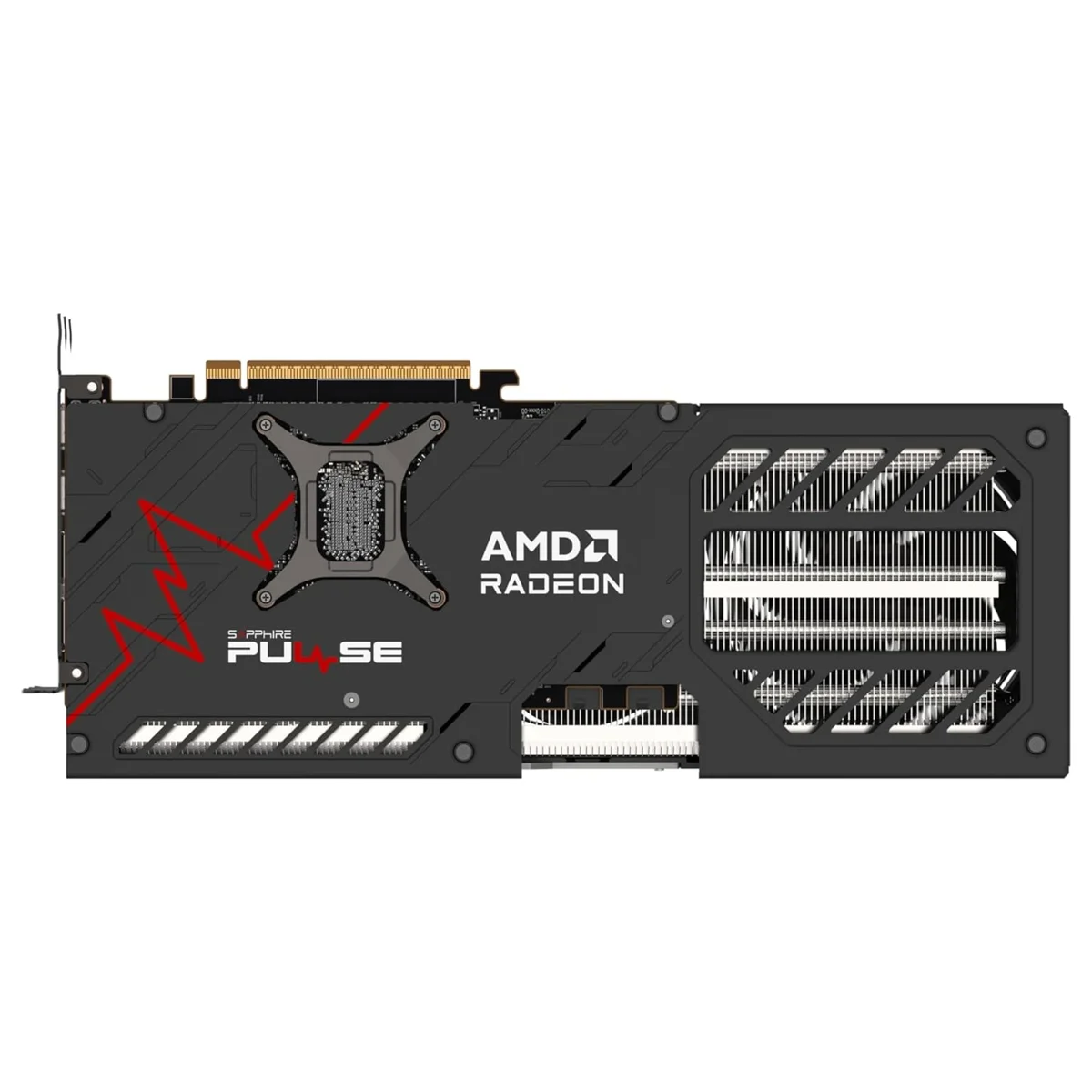

Rigid Backplate: Tough metal all-aluminum backplate adds rigidity and helps increase heat dissipation
AMD Feature Support: AMD HYPR-RX with AFMF 2, AMD FidelityFX Super Resolution 4 with AI Upscaling, AMD Radiance Display Engine, and AMD Fluid Motion Frames 2 technology
Product Specifications

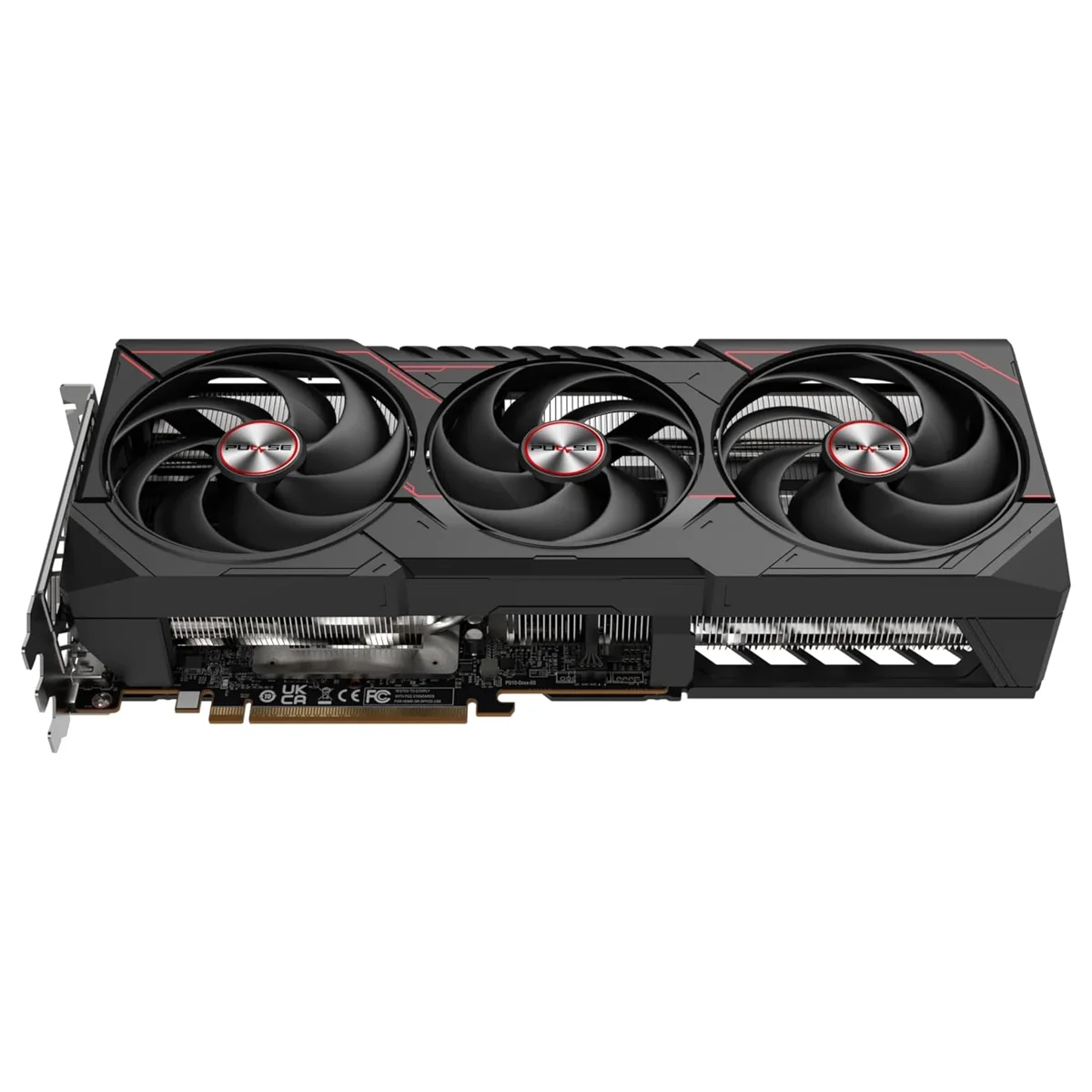

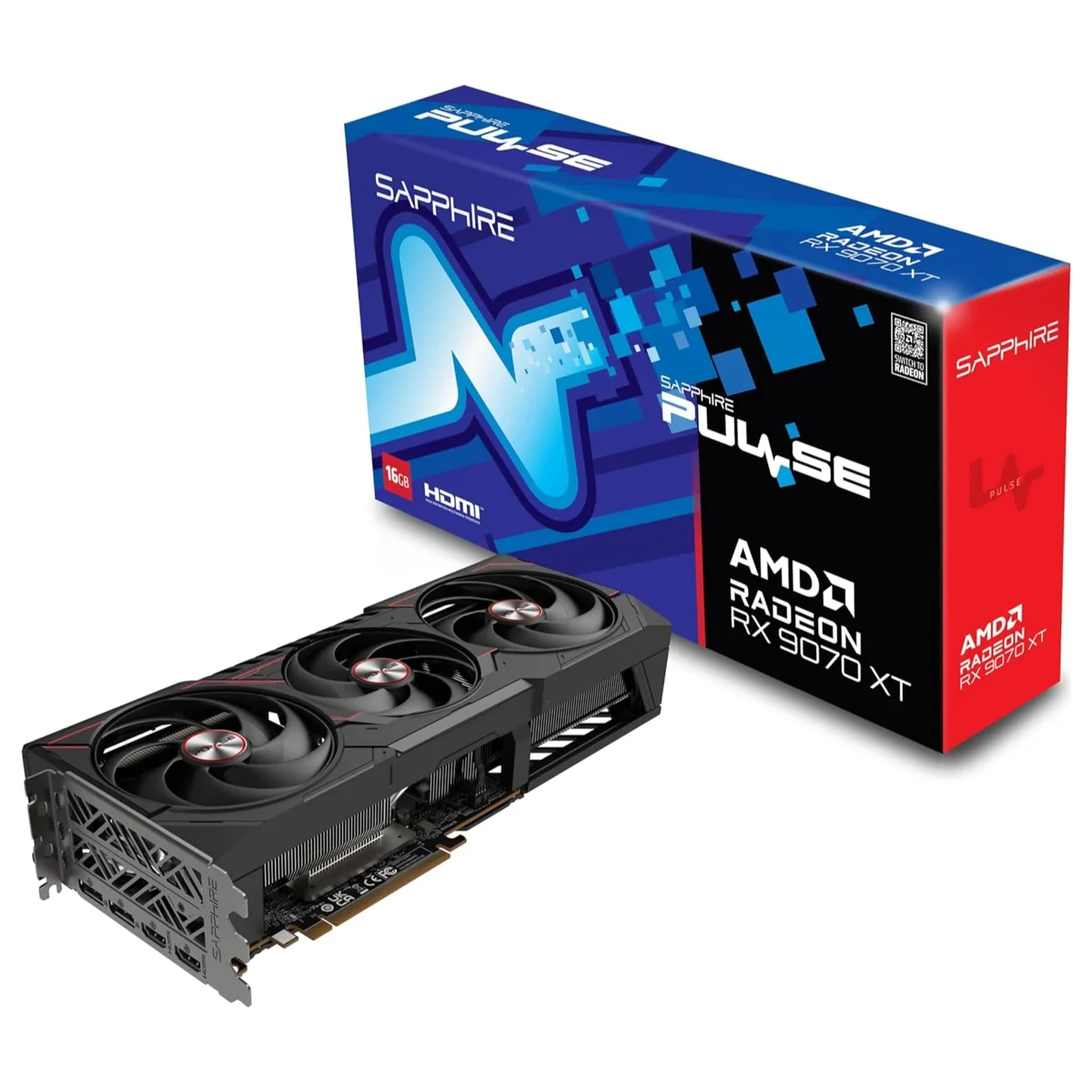

Product: AMD Radeon RX 9070 XT Graphics Card
Architecture: AMD RDNA 4 Architecture
Stream Processors: 4096
Compute Units: 64 CUs 3rd Gen RT and 2nd Gen AI Accelerators
Ray Accelerators: 64
AI Accelerator: 128
Infinity Cache: 64MB
Engine Clock: Boost Clock Up to 2970MHz; Game Clock Up to 2400MHz
Memory Size and Bus: 16GB/256 bit GDDR6
Memory Clock: 20Gbps Effective
Interface: PCI-Express 5.0 x16
Outputs: 2x HDMI; 2x DisplayPort 2.1a
Maximum Displays: 4
Resolution: HDMI 7680×4320; DisplayPort 2.1a 7680×4320
BIOS Support: UEFI
Game Index: 4K
Cooler Type: Tri-X Cooling
Form Factor: 3 slot, ATX
Dimensions: 320(L) x 120.25(W) x 61.6(H)mm
Power Consumption: 304W Typical Board Power
OS: Linux, Windows 10, and Windows 11 64-bit operating system required
System Requirement: Minimum 750 Watt Power Supply; 2 x 8-pin Power Connector
System Requirement: PCI Express based PC required with one X16 lane graphics slot available on the motherboard
System Requirement: Minimum 8GB system memory; 16GB recommended
Accessories Bundled: L-Shape Support Bracket
